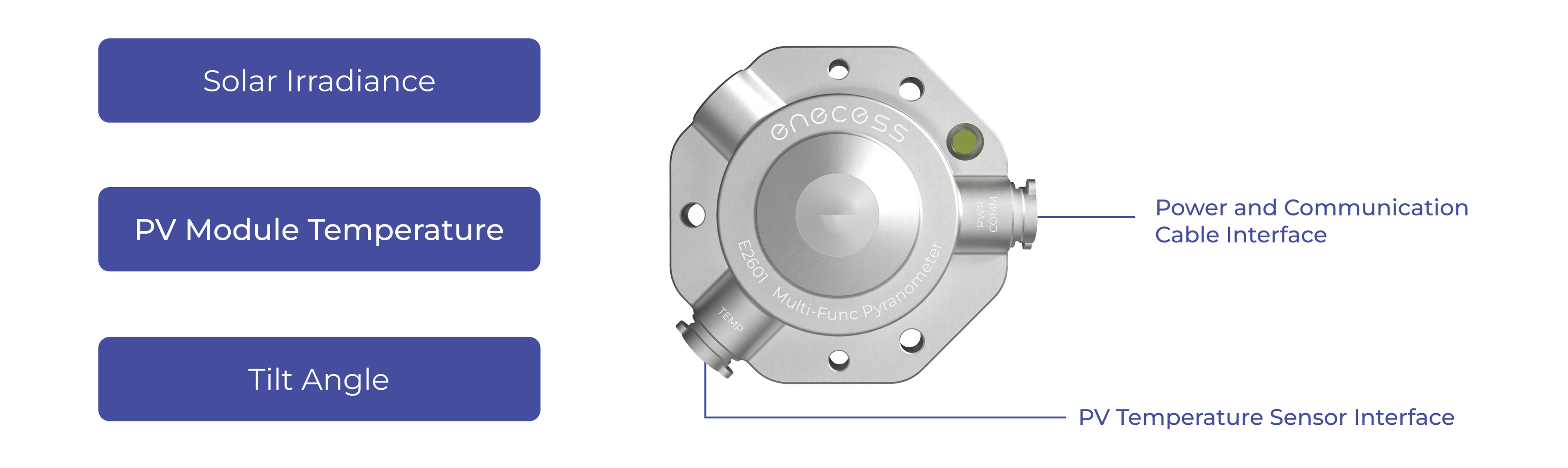

Three-in-one multifunctional Pyranometer

It integrates solar irradiance, PV module temperature and support inclination sensors, and collects all the data needed to monitor the performance of commercial rooftop PV plants.

Solid Performance

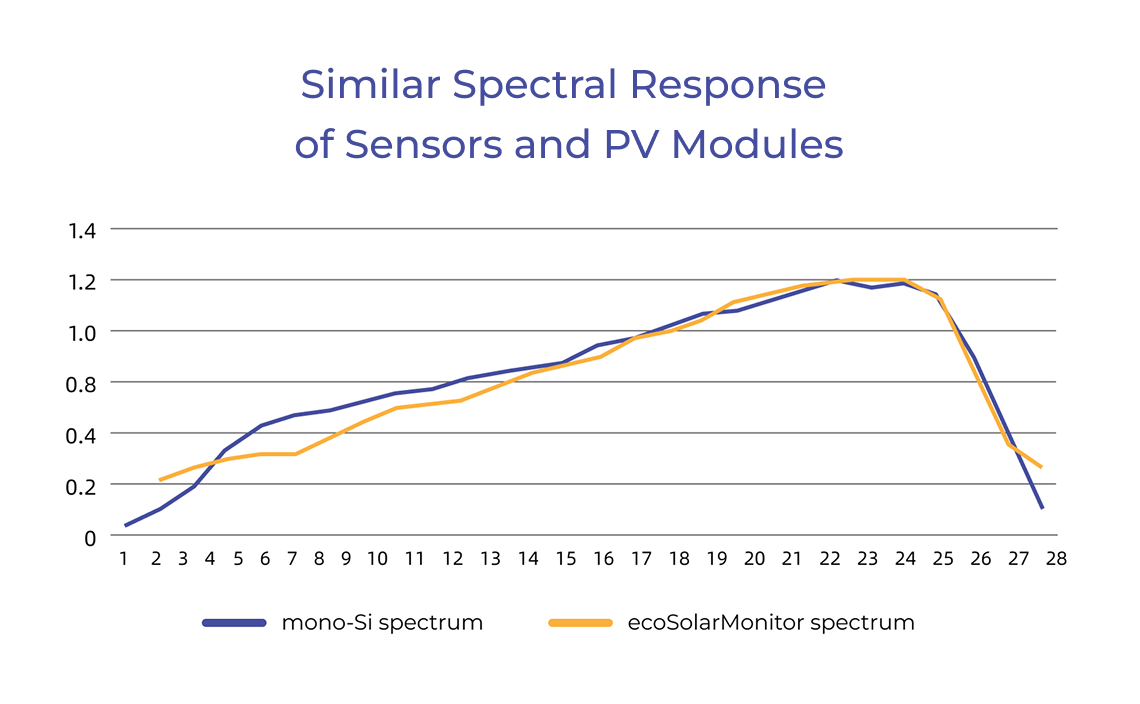

Spectral Perfect Matching

Closely matches the spectral characteristics of PV modules delivering reliable data for power generation forecasting and system performance evaluation.

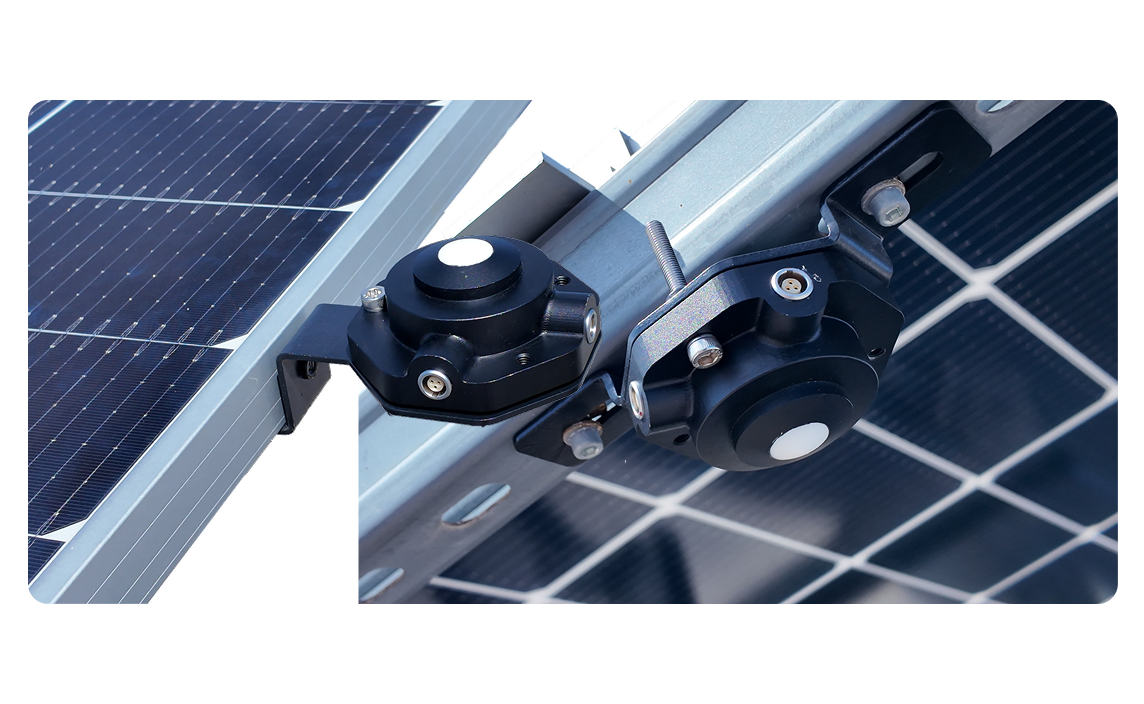

Reliable Low-Light Detection · Bifacial Performance Evaluation

Featuring stable low-light response and low-noise design, it supports accurate data acquisition under weak irradiance conditions. Dual-side mounting enables consistent assessment of bifacial module output, contributing to improved system performance.

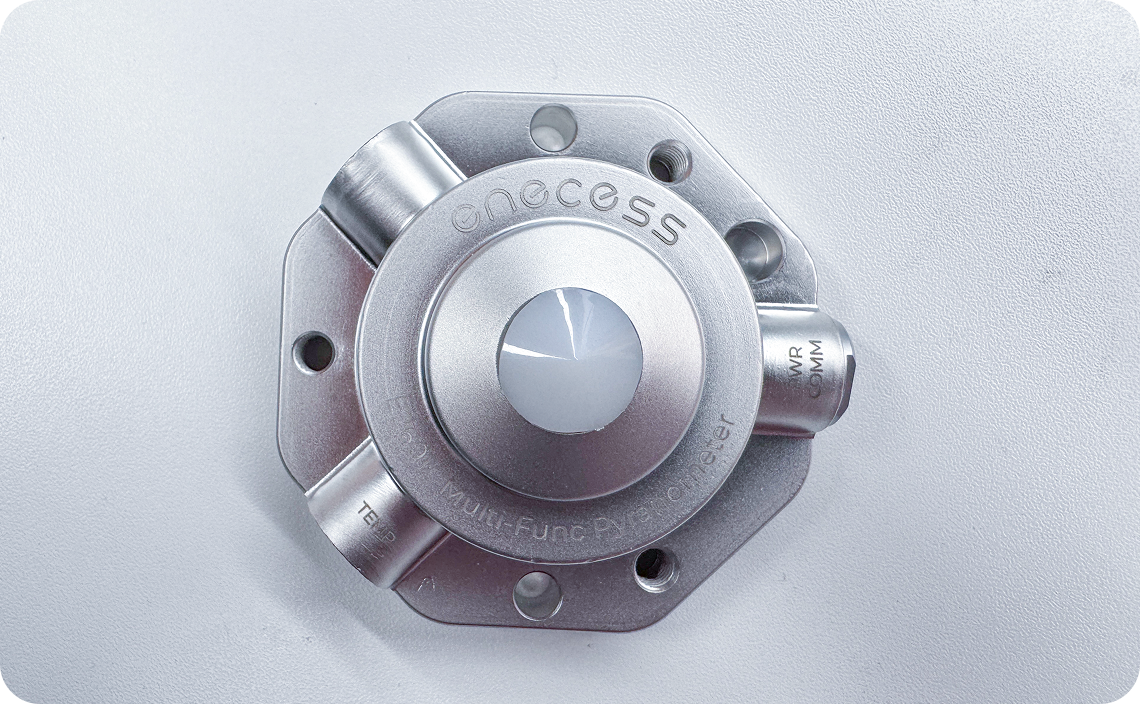

Optimized Diffuser Design for Directional Accuracy

The diffuser provides stable cosine response for accurate irradiance measurement. Its conical shape helps minimize dust accumulation and supports easier maintenance.

All-Weather Performance Assurance

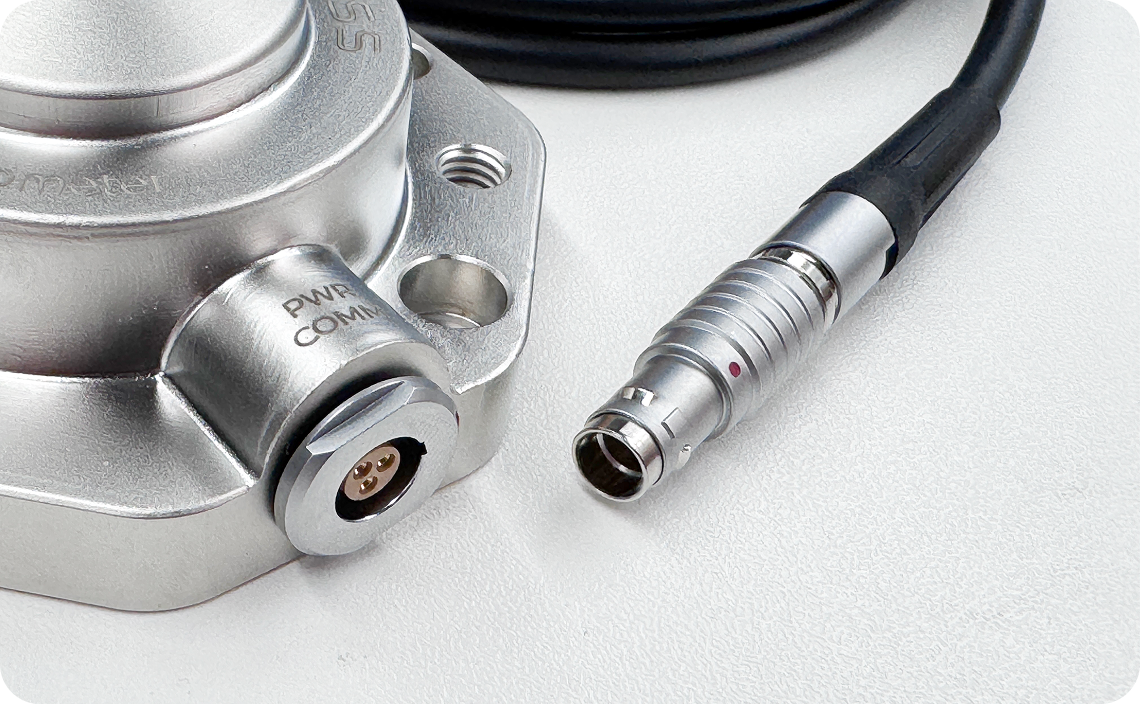

Equipped with a wide-temperature compensation circuit and an aluminum alloy housing, together with high-performance waterproof aviation connectors, it achieves IP67 protection, ensuring stable and reliable operation in complex outdoor environments.

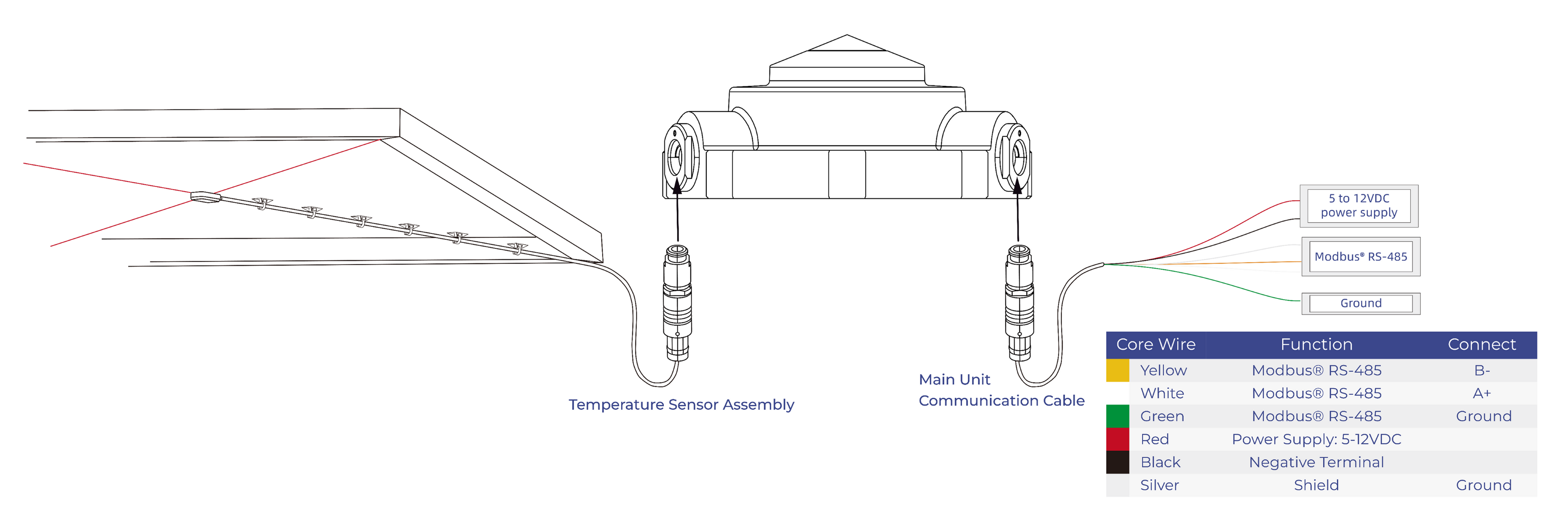

System Connection Diagram

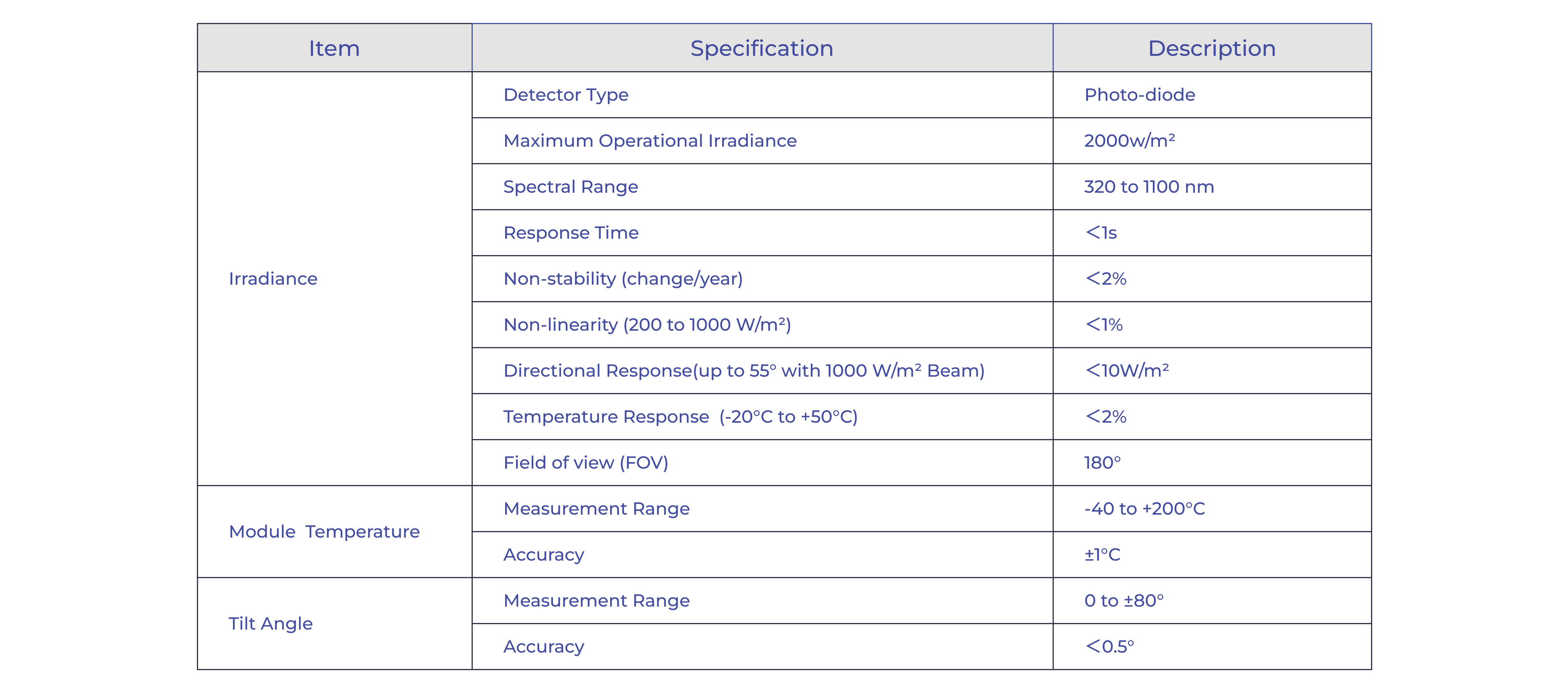

Specifications

Multifunctional Pyranometer Product
