ecoMain-Home Energy Monitor

ecoMain-Home Energy Monitor

$167.00 USD
$167.00 USD
Sale Sold out
Shipping calculated at checkout.
🔧 Distribution Box Operation: Requires professional electrical knowledge; certified electrician recommended for safety & compliance.
🧭 Circuit Structure Knowledge: Understand household distribution circuit structure. For three-phase systems, correctly identify branch circuit flow & phase.
📏 Space Requirements: Distribution box needs ≥4P space for main unit + sufficient room for current transformers.
Say Goodbye to High Energy Bills: Accurately identify energy-hungry appliances, optimize usage habits, and easily cut down on utility costs!
Optimize PV Self-Consumption: Monitor full-process PV data, and reduce grid reliance & costs via linked controls.
Compatible with All Power Systems: Supports single-phase / split-phase / three-phase power systems, with WiFi + Ethernet connectivity.

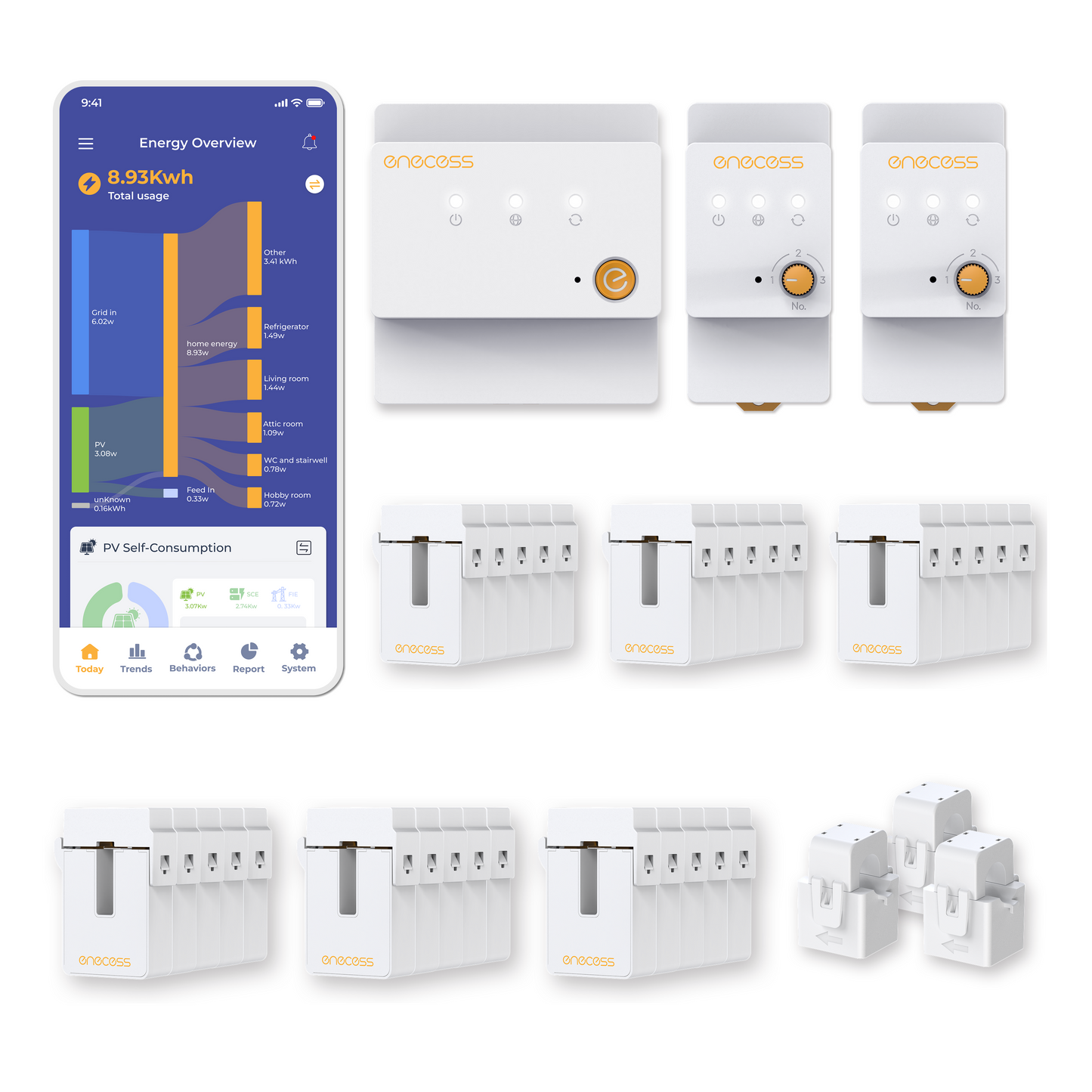

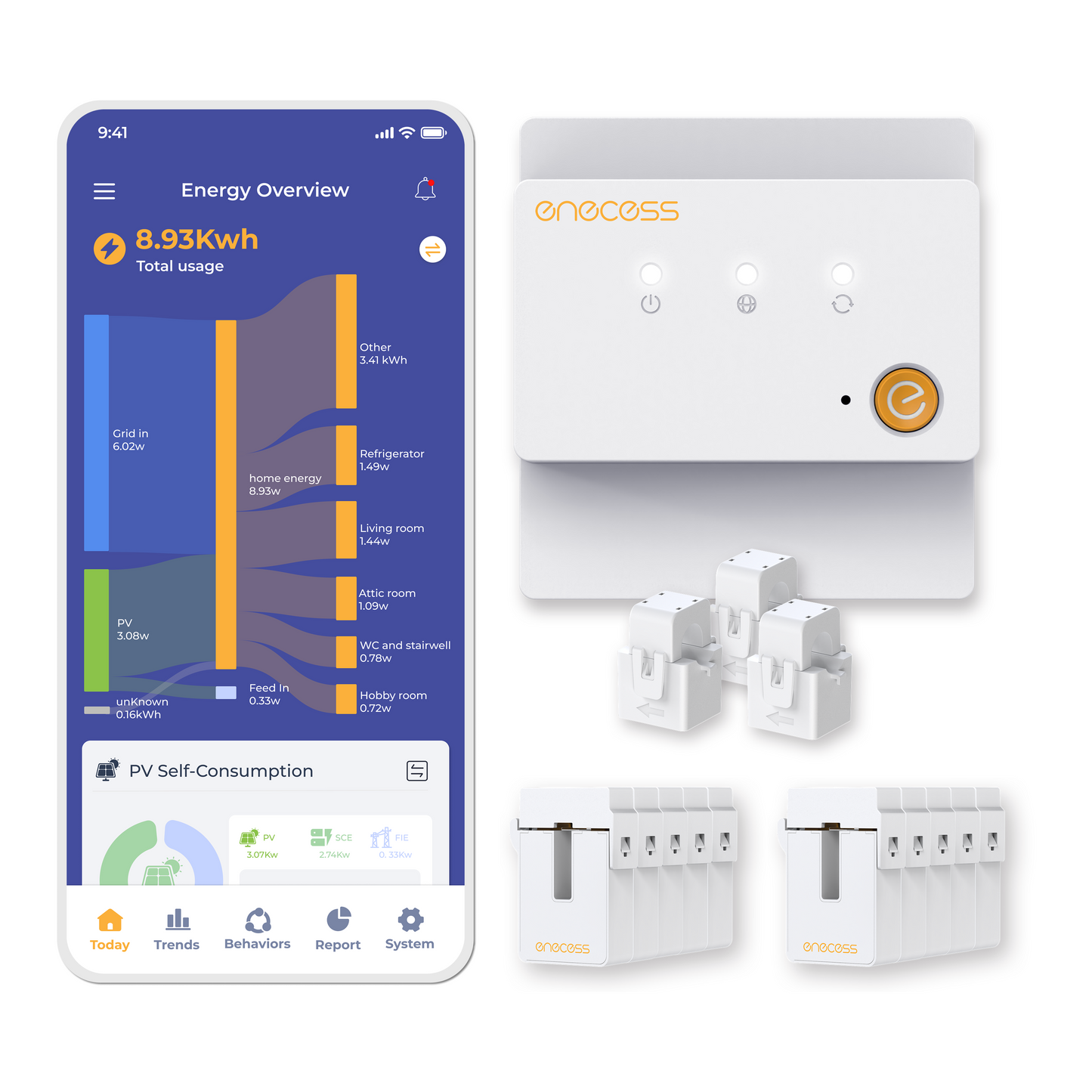

Energy Data Visualization: The APP intuitively displays energy sources, flows, and usage, helping you refine energy strategies.
Ideal For: SMBs & homeowners needing real-time energy data
✅ Home Assistant Integration
Works with Home Assistant, providing PV/electricity data for automated energy management.

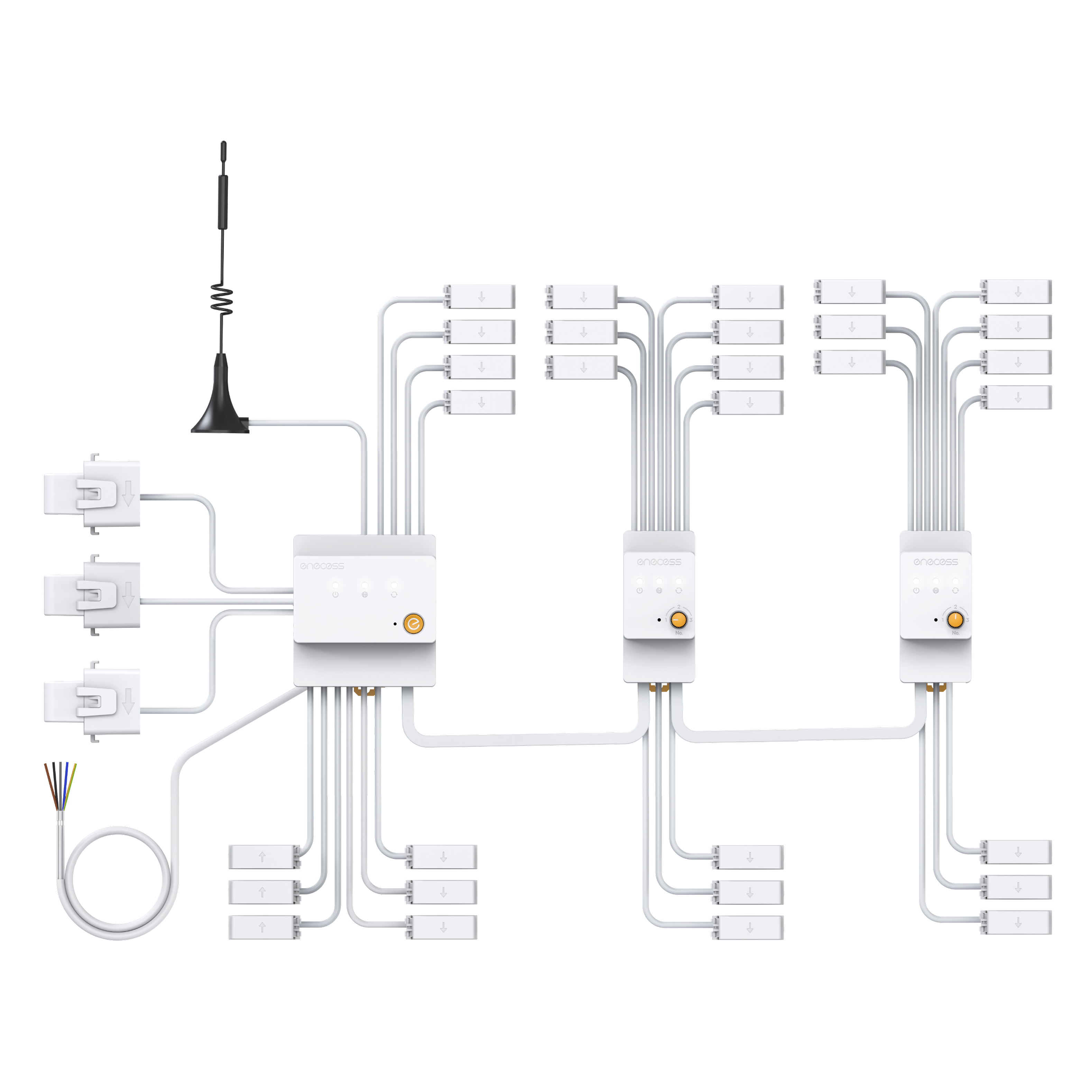

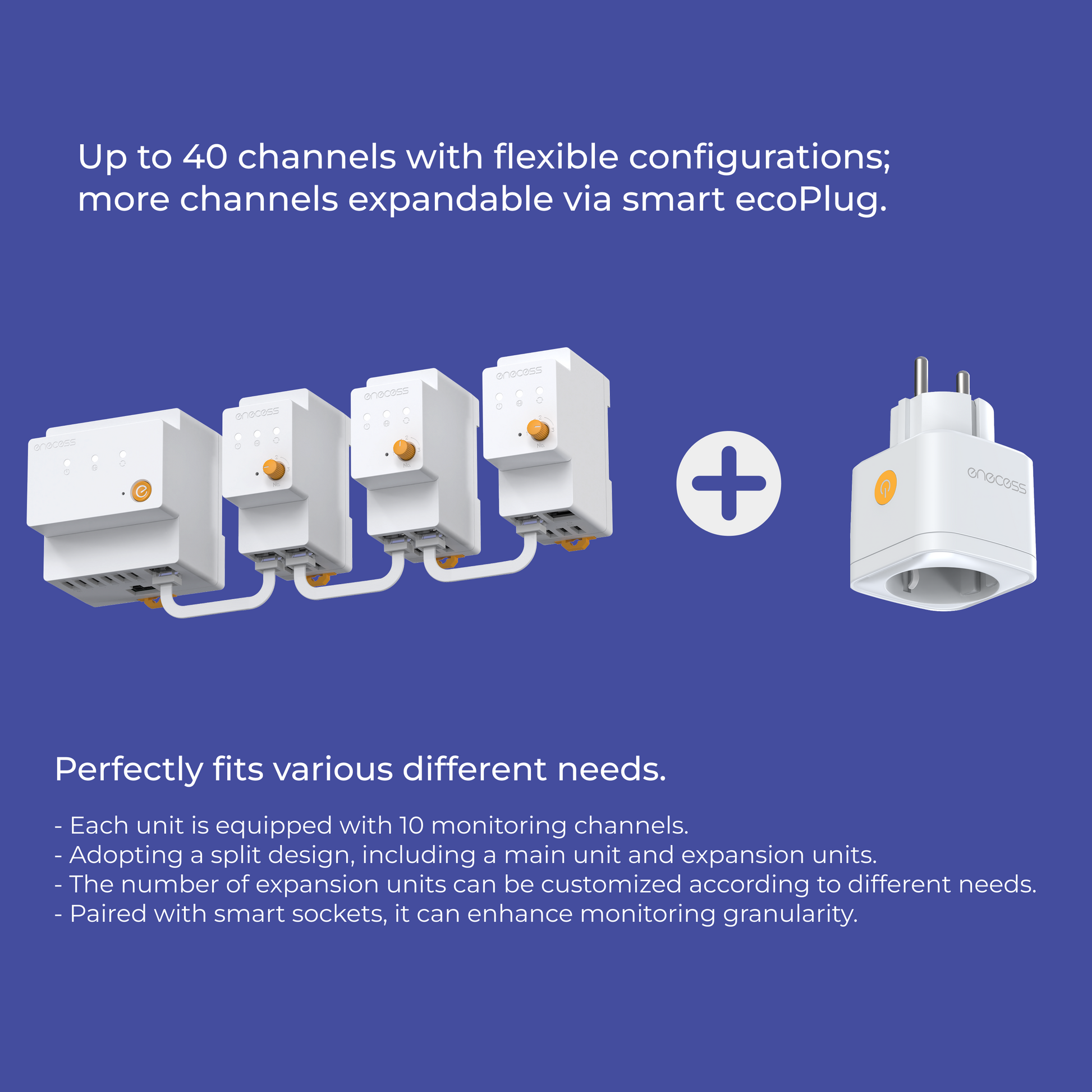

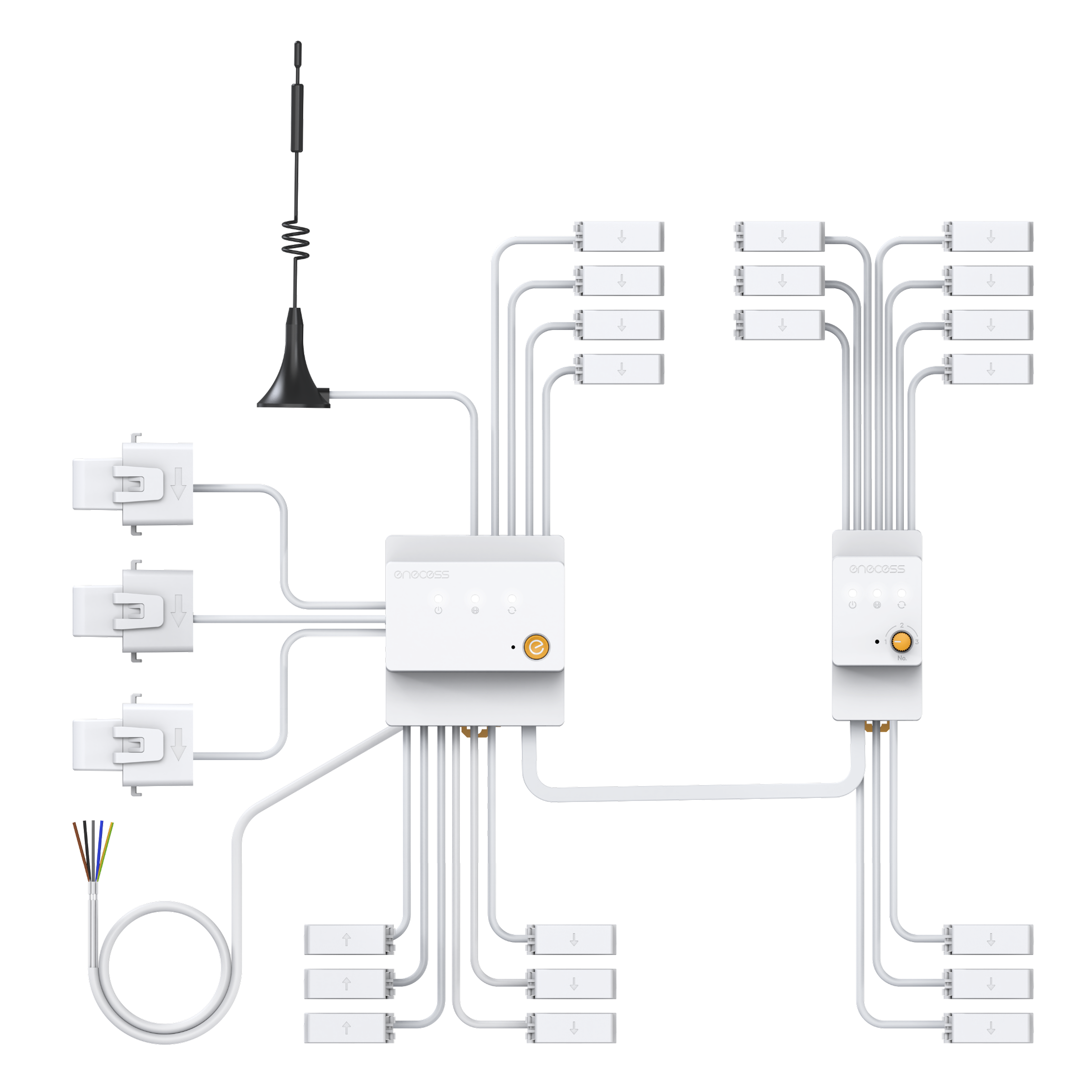

✅ 40-Circuit Precision Monitoring
No complex system integration required—supports independent monitoring of up to 40 branch circuits, ideal for SMBs, apartments & villas.
✅ Granular Energy Analysis for Savings
Clarify household electricity bill composition, monitor key device energy use & identify energy-saving opportunities.
🛡️ 1-Year Warranty: Backed by industry-leading after-sales support for reliable protection.
📱 Free App Lifetime Updates: Complimentary firmware & feature upgrades for the energy monitoring app—no extra cost for new functions!
📊 Annual Energy Analysis Report: 1 household/commercial PV energy optimization report per month to boost power generation efficiency.
Number of Monitorable Channels
View full details

Videos

Customers are saying

5.00 ★ (5)
Verified

How many monitoring channels do you need to choose?

  • 5 channels

    Suitable for simple scenarios such as small-family households, it only monitors basic power circuits, with low cost and can meet daily basic energy consumption monitoring needs.

  • 10 channels

    Applicable to conventional household power distribution scenarios, it can basically cover major electrical devices such as air conditioners, refrigerators, and kitchen appliances, with high cost-effectiveness.

  • 20 channels

    It’s suitable for high-device-density scenarios, covering most branch circuits and meeting the comprehensive monitoring needs of medium-to-high load electrical environments.

  • 30 channels

    It’s suitable for complex electrical scenarios, covering all electrical devices and branch circuits. It balances current monitoring needs with future expansion, meeting high-demand energy management requirements.

Specification

Specification

Technical Specification
Supported Systems:
◦ Single phase, 2-wire systems;
◦ Single-split phase, 3-wire systems;
◦ 3-phase, 4-wire Wye systems with earthed (TN or TT), neutral (no-Delta)

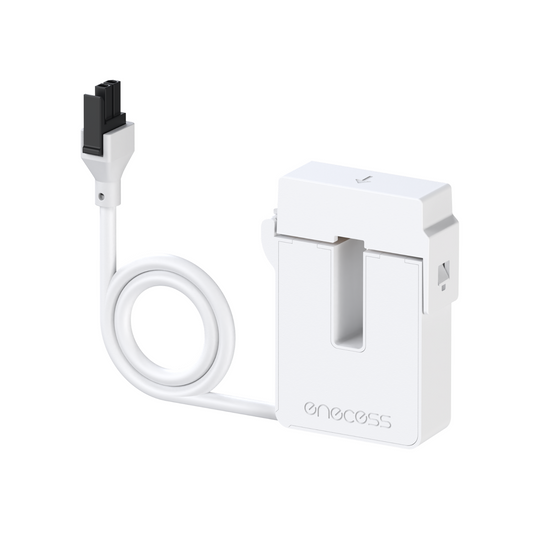

CT Current Sensors:
◦ Up to 3 x 100A mains and up to 40 x 30A branch circuits
Max Voltage Sensing
◦ 264VAC L-N per channel

Connection Specs

Wi-Fi: 2.4 GHz, IEEE 802.11b/g/n

Ethernet: 10/100Base-T, IEEE 802.3

  • Operating Conditions: 0° - 40° C
  • 20-80% RH
  • 2,000 meters above sea level
  • Indoor | Dry location
  • Pollution Degree 2

Enecess App and Data Storage

Internet Connection Required
Please be aware that the enecess Home Energy Monitor requires an active internet connectionto deliver its key features. This connection is necessary for:

  • Real-time energy monitoring
  • Unlimited data storage in the cloud
  • Automatic software updates

The device does not support local data storage, so an internet connection is essential for it to function as intended.

Certifications

CE Certification

ROSH Certification

TUV Certification

FCC Certification

What's Included

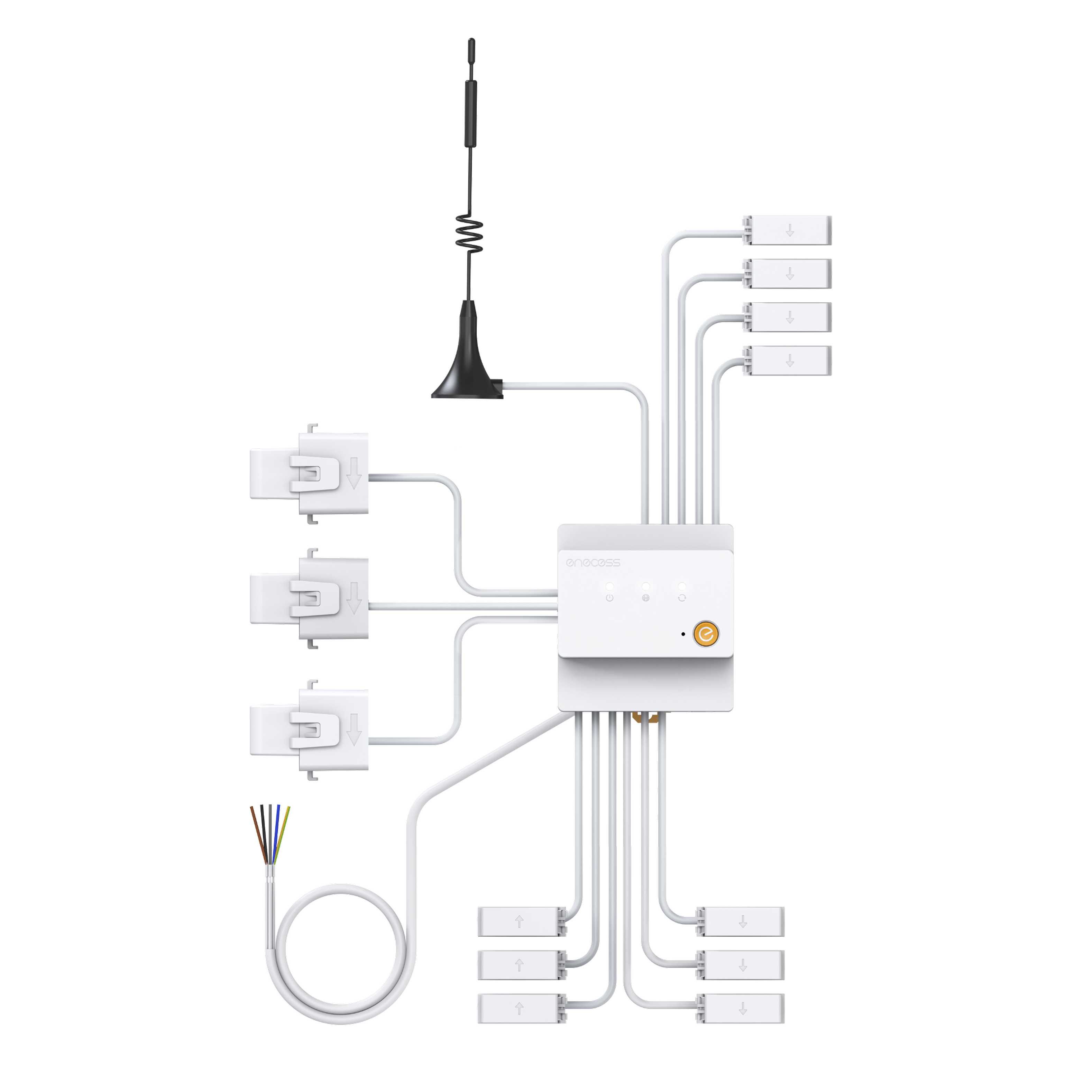

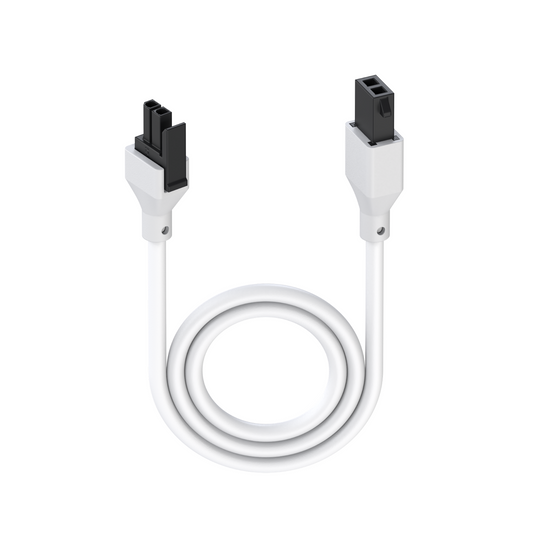

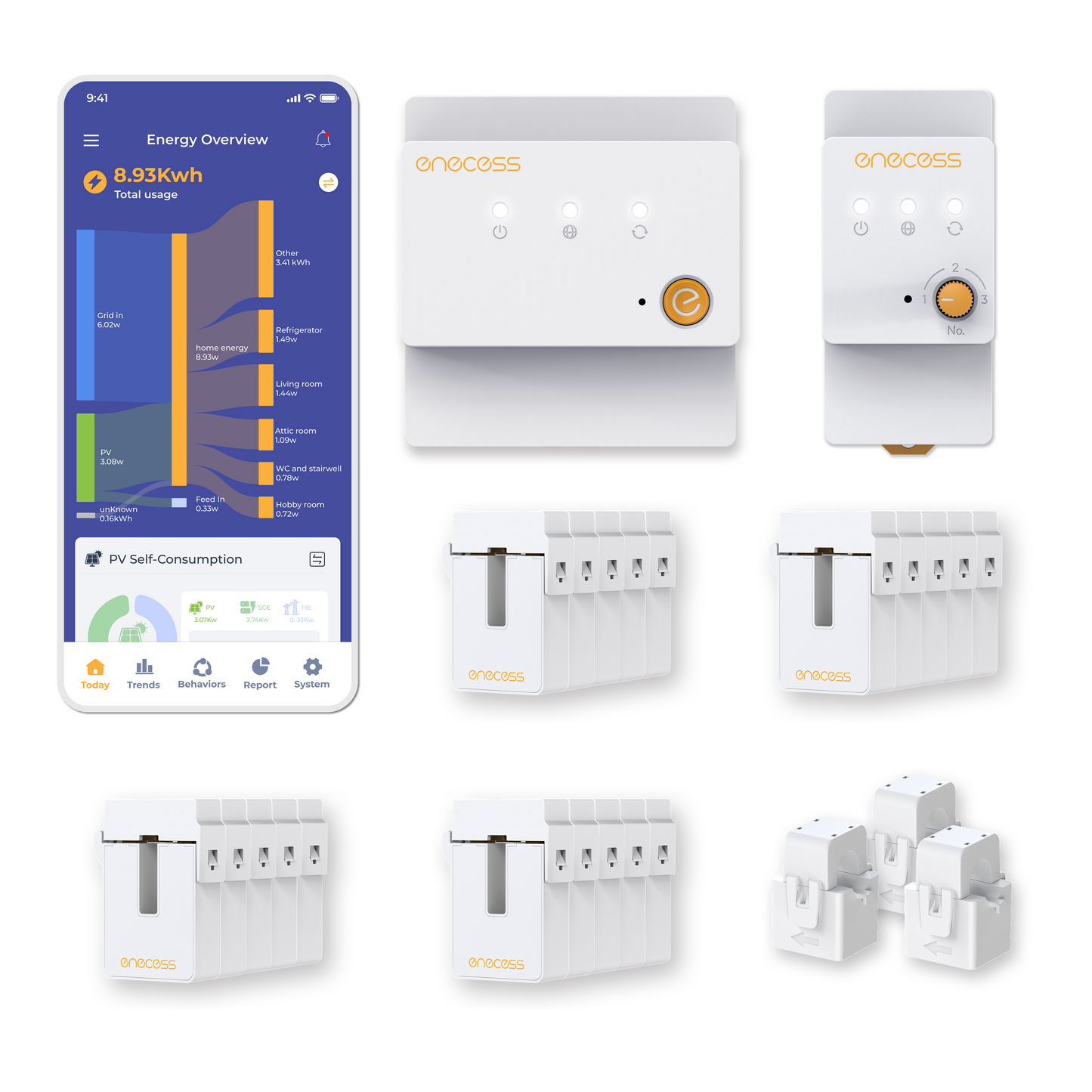

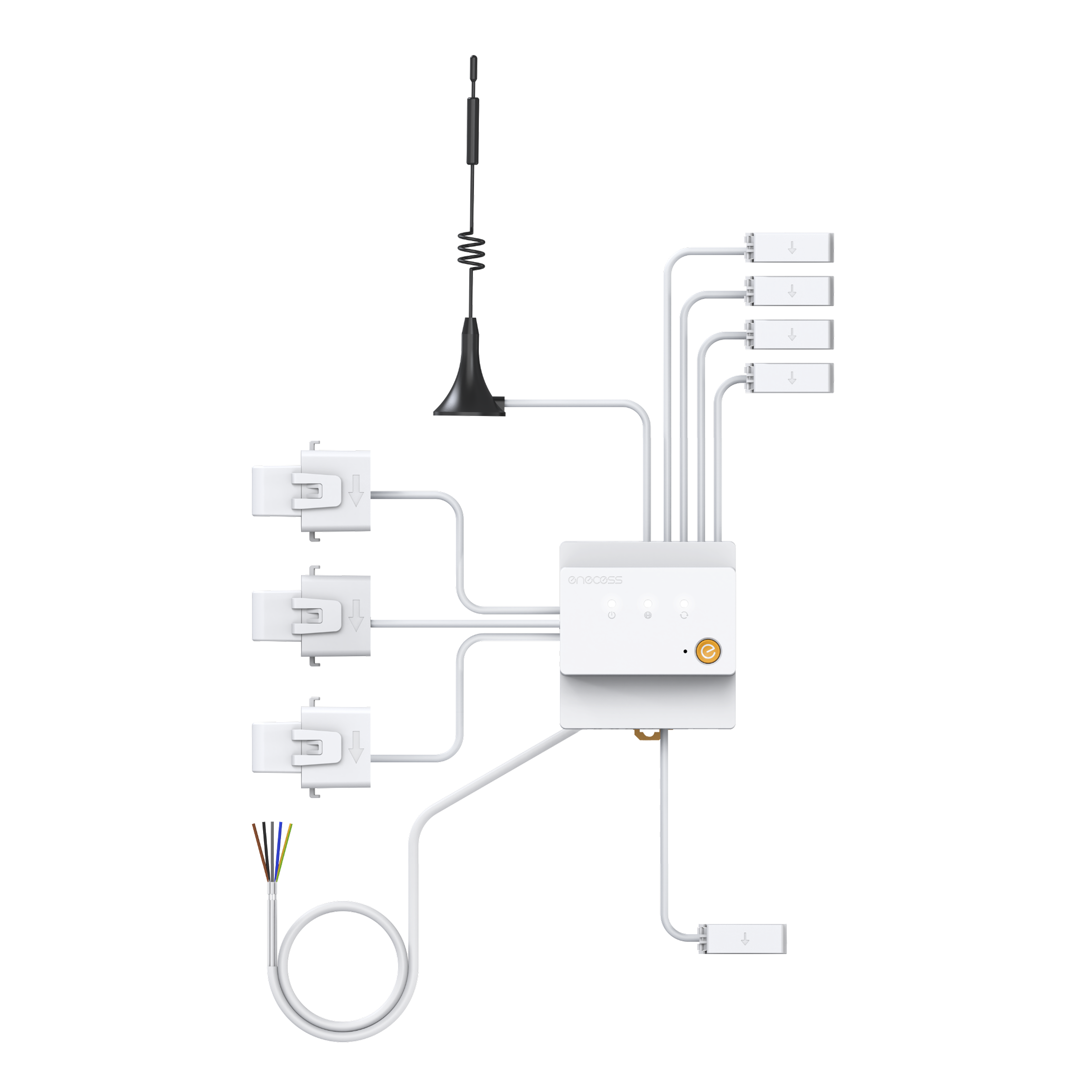

1 ecoMain; 5 ecoSensor (30A) ; 3 ecoSensor (100A) ; 1 antenna; 1 power cable;1 label; 2 Sensor Extension Cables;1 user manual
