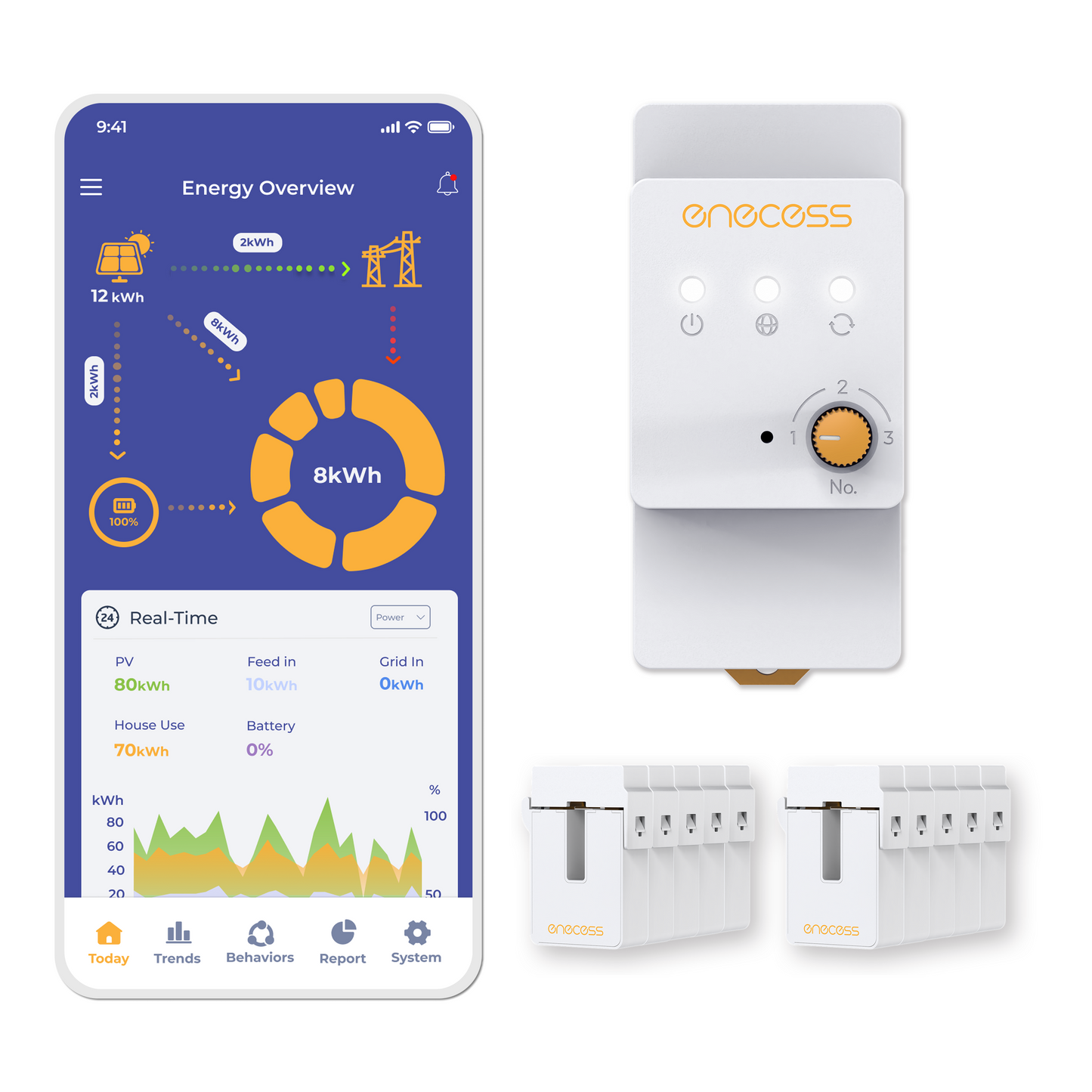

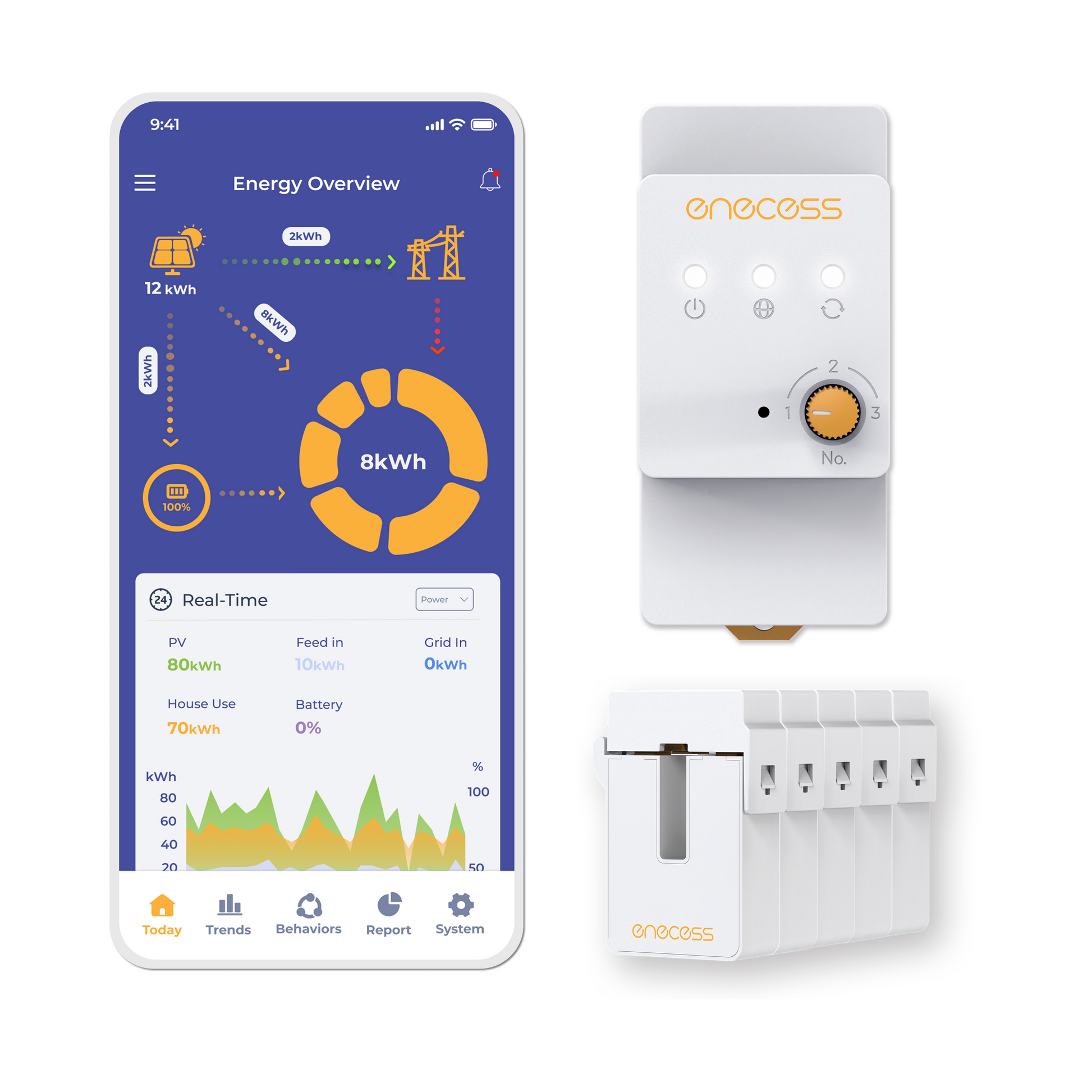

ecoSub-Must be used with ecoMain

ecoSub-Must be used with ecoMain

$103.00 USD
$103.00 USD
Sale Sold out
Shipping calculated at checkout.
🔧 Distribution Box Operation: Requires professional electrical knowledge; certified electrician recommended for safety & compliance.
🧭 Circuit Structure Knowledge: Understand household distribution circuit structure. For three-phase systems, correctly identify branch circuit flow & phase.
📏 Space Requirements: Distribution box needs ≥4P space for main unit + sufficient room for current transformers.
Flexible Cables for Long-Distance Monitoring
Extension cables + cascading support, covering remote points. Reduces clutter, saves cabinet space, solves length shortages
Compact Design for Space Savings
Slim DIN rail mount, multiple ecoSubs fit narrow cabinets; 12mm ultra-thin ecoSensors for dense wiring/circuit breakers.
Modular Structure for Seamless Scalability

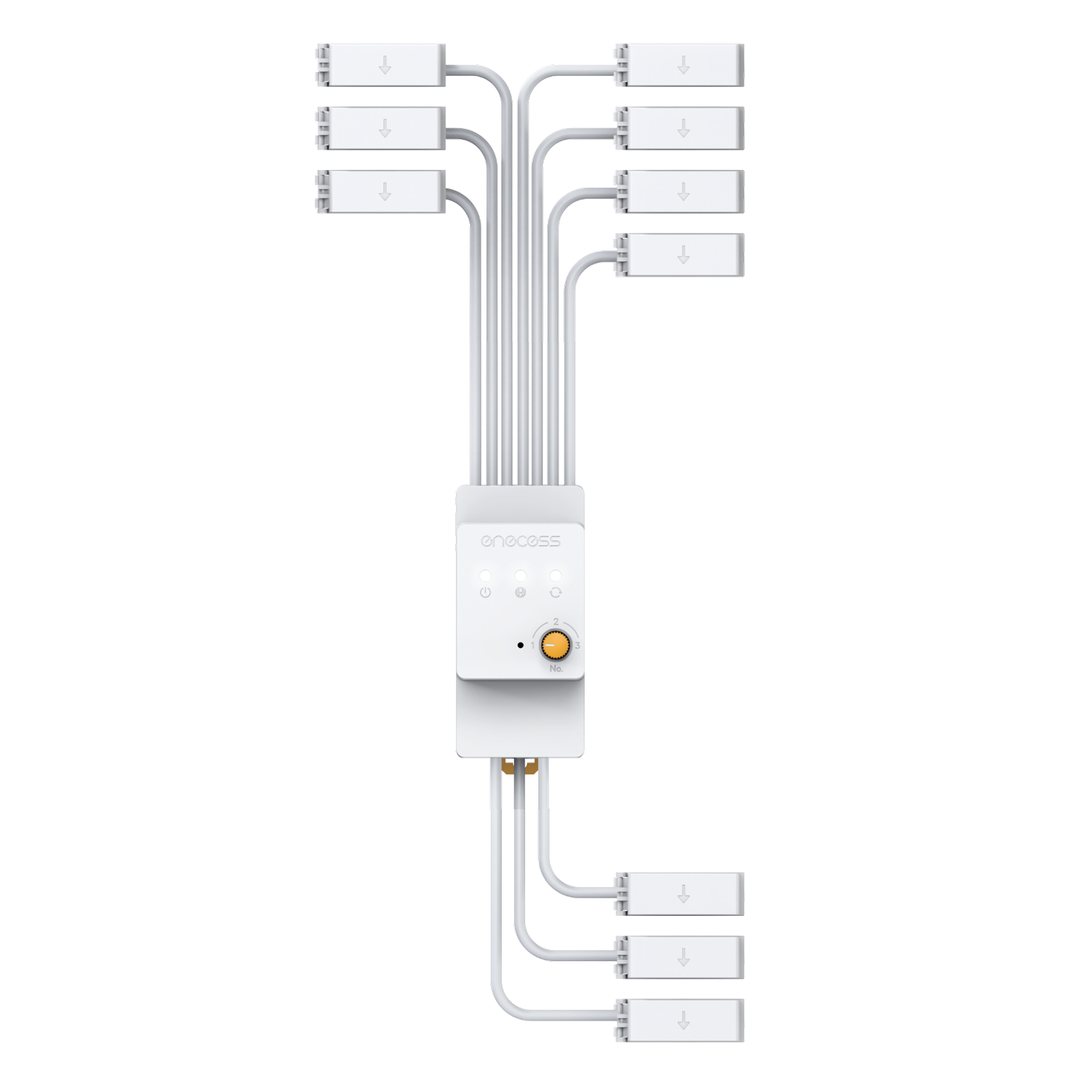

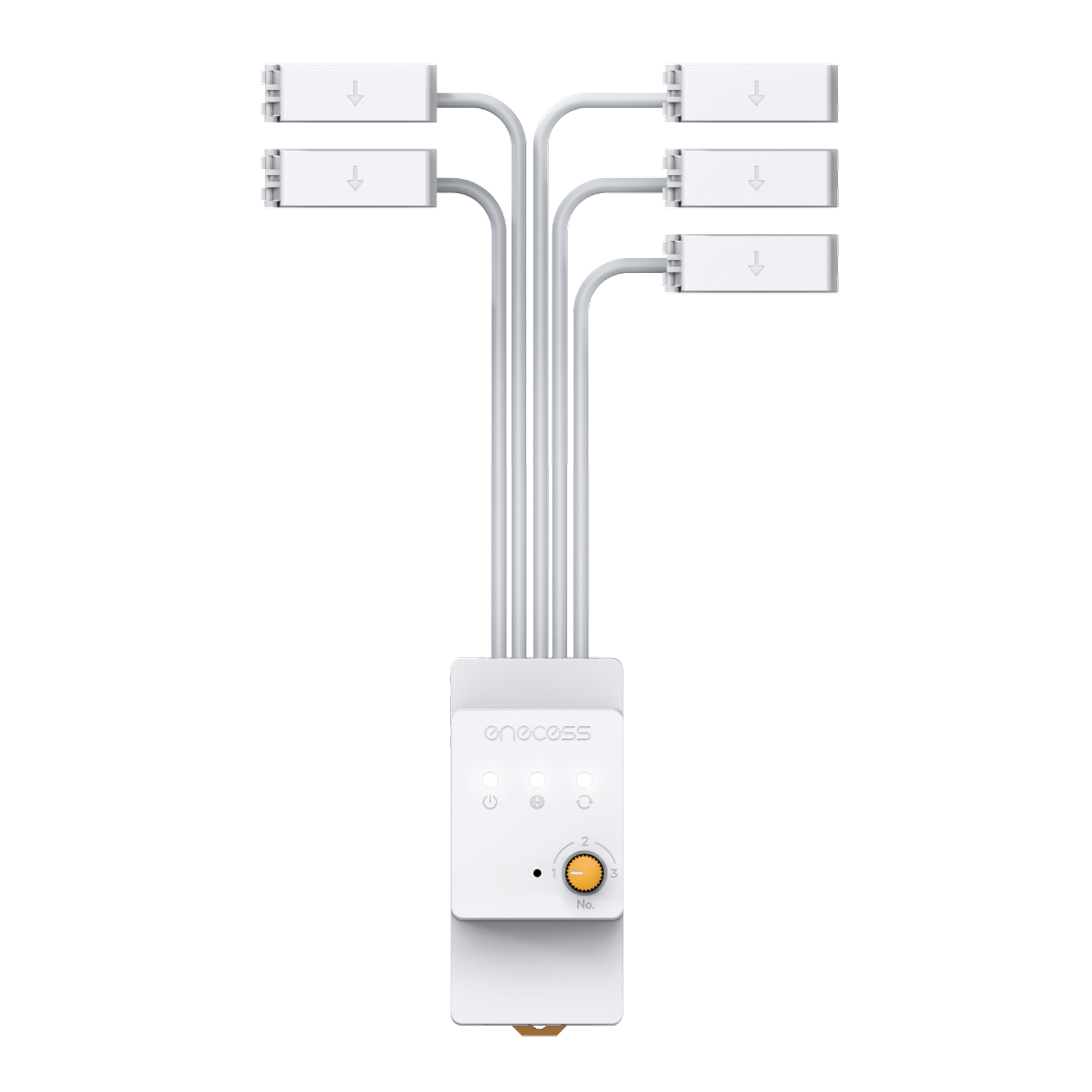

ecoSub connects to ecoMain via ecoBus for flexible expansion; ecoPlug adds channels to enable device-level precise monitoring.
Ideal For: Users who already own ecoMain and need to expand energy monitoring channel capacity — ecoSub enables efficient expansion of monitoring circuits.
✅ Home Assistant Integration
Compatible with platforms like Home Assistant, providing full PV/electricity data to enable automated home energy management.
✅ 40-Circuit Precision Monitoring
No complex system integration required—supports independent monitoring of up to 40 branch circuits, ideal for SMBs, apartments & villas.
🛡️ 1-Year Warranty: Backed by industry-leading after-sales support for reliable protection.
📱 Free App Lifetime Updates: Complimentary firmware & feature upgrades for the energy monitoring app—no extra cost for new functions!
📊 Annual Energy Analysis Report: 1 household/commercial PV energy optimization report per month to boost power generation efficiency.
Number of Monitorable Channels
View full details

Customers are saying

5.00 ★ (5)
Verified

How many monitoring channels do you need to choose?

  • 5 channels

    Suitable for simple scenarios such as small-family households, it only monitors basic power circuits, with low cost and can meet daily basic energy consumption monitoring needs.

  • 10 channels

    Applicable to conventional household power distribution scenarios, it can basically cover major electrical devices such as air conditioners, refrigerators, and kitchen appliances, with high cost-effectiveness.

Specification

Specification

Technical Specification
Supported Systems:
◦ Single phase, 2-wire systems;
◦ Single-split phase, 3-wire systems;
◦ 3-phase, 4-wire Wye systems with earthed (TN or TT), neutral (no-Delta)
CT Current Sensors:
◦ Up to 3 x 100A mains and up to 40 x 30A branch circuits
Max Voltage Sensing
◦ 264VAC L-N per channel

Connection Specs

  • Operating conditions: 0°C to 40°C
  • Relative humidity: 20-80%
  • Altitude: below 2000 meters
  • Indoor
  • Dry environment
  • Pollution degree: PD2
  • Power supply: Provided by the ecoMain unit
  • Power consumption: <1W

Certifications

CE Certification

ROSH Certification

TUV Certification

FCC Certification

What's Included

1 ecoSub; 5 ecoSensor (30A) ; 1 ecoBus cable; 1 user manual
